Home MathPack Matrix Class TMat4D Methods Copy1DArrayToPixel
See also: CopyMatrixToLayer, CopyPixelTo1DArray, CopyVectorToPixel

Copy1DArrayToPixel

Unit: SDL_matrix
Class: TMat4D
Declaration: function Copy1DArrayToPixel (Src: TDoubleArray; Col, Row, FirstLayer, TimeSlot: integer): integer;

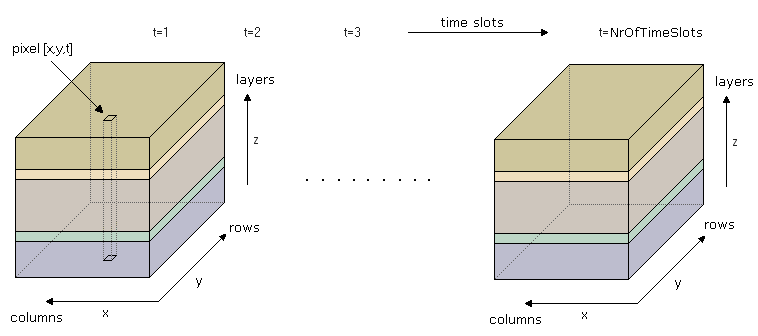

The method Copy1DArrayToPixel copies the data of the one-dimensional array Src to the pixel specified by the parameters Col, Row and TimeSlot. The parameter FirstLayer determines the layer where the first element of Src is copied to.

The parameters Col, Row, FirstLayer and TimeSlot have to be within the valid range (i.e. between 1 and NrOfColumns, 1 and NrOfRows, 1 and NrOfLayers, and 1 and NrOfTimeSlots). The function returns one of the following codes:

 0 ... everything is OK
-1 ... Col is out of range
-2 ... Row is out of range
-3 ... FirstLayer is out of range
-4 ... TimeSlot is out of range

Last Update: 2023-Feb-06
