IsotopeVis

Unit:SDL_cform
Class:TMolForm
Declaration:property IsotopeVis: TIsotVisib;

The property IsotopeVis determines if and how the atomic weight is displayed. It may assume the following values:

ivNone no atomic weights are displayed
ivSpecial only those atoms having atomic weights which differ from the most abundant isotope are displayed with their atomic weights
ivAlways all atoms are displayed with their atomic weights.

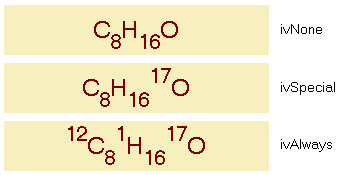

The figure below shows the results of these three choices.


Last Update: 2023-Dec-13
